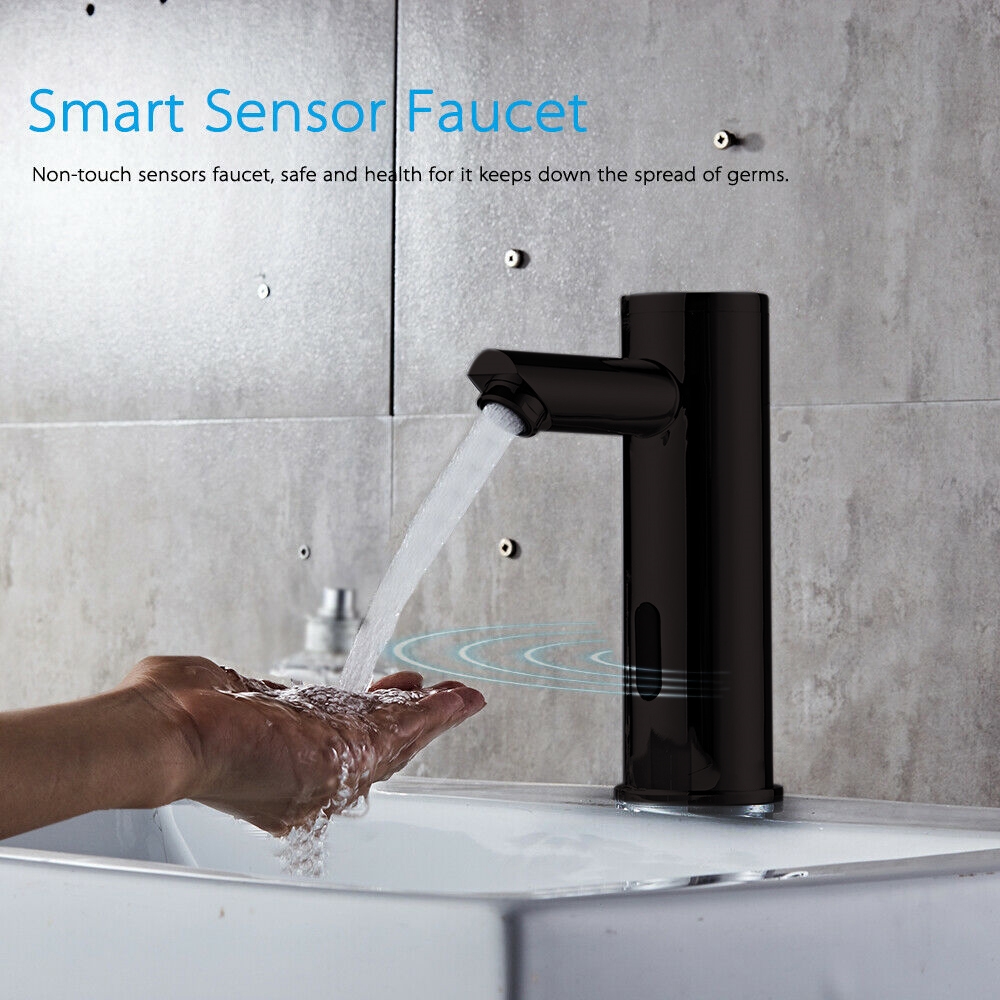

Fontana Sierra Commercial Matte Black Automatic Sensor Faucet

Motion detection touchless sensor faucet operation Sensitive Sensor with Infrared AI Smart-Chip Factory set to 30-second Auto Shutoff (can be adjusted). Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi Solid Brass Construction, Matte Black Finish Easy to Install - Instructions Included Water-resistant solenoid enclosure Advanced energy-saving design for long-lasting battery life Comes complete with Hoses & Accessories Power Supply: AC110V And DC6V (batteries not included) AC/DC power option. ADA Compliant. Can be installed easily in new or upgraded retrofit commercial bathrooms. Usage: Commercial Ideal for commercial use applications in public restrooms, restaurants, office buildings, public facilities, and hospitals. Fits all standard US plumbing.
Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water by eliminating unnecessary or unattended water flow.

Sensor Activated Faucet Special Features

• Durable Vandal-Resistant Brass Body; Ideal for commercial high use applications
• Intelligent: with its micro-computer controlling its action, the faucet will self-adjust its best detection zone as per the color and shape of the lavatory
• Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
• The meaning of the codes is described in the installation instructions.
• Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
• The faucet can be mounted to any sink surface.
• ADA Compliant.
• The battery's life is 8,000 cycles per month and with enough water pressure is approx 5 years service life of the batteries.
• Adjustable sensing range; while the factory range is set about 4" to 5" from the sensor, it can be adjusted.

Specifications

• Diameter of inlet pipe: DN15
• Diameter of outlet pipe: DN15
• Water Pressure: 0.05Mpa - 0.7Mpa
• Power: DC.6V
• Power Consumption: 0.5MW
• Detection Zone: Factory set 25cm/10" (based on standard inductive board)
• Ambient Temperature: 1 - 45 °C / 33.8 -113 °F
• Degree of protection by enclosure: 1P56
• Battery: 4 x 'AA' size cells
• Operational water pressure range: 0.05 - 0.6MPa
• US standard water supply pipe size: DN15 (G1/2")
• Ambient temperature range: 0.1 - 45ºC
• Sensing distance: 9.84" (25cm)
• Time delay: 0.5 seconds
• Operation duration: Power will automatically cut off after continuous use for 60 seconds
• Manufacturer Warranty: 10-Years
• Color: Chrome
