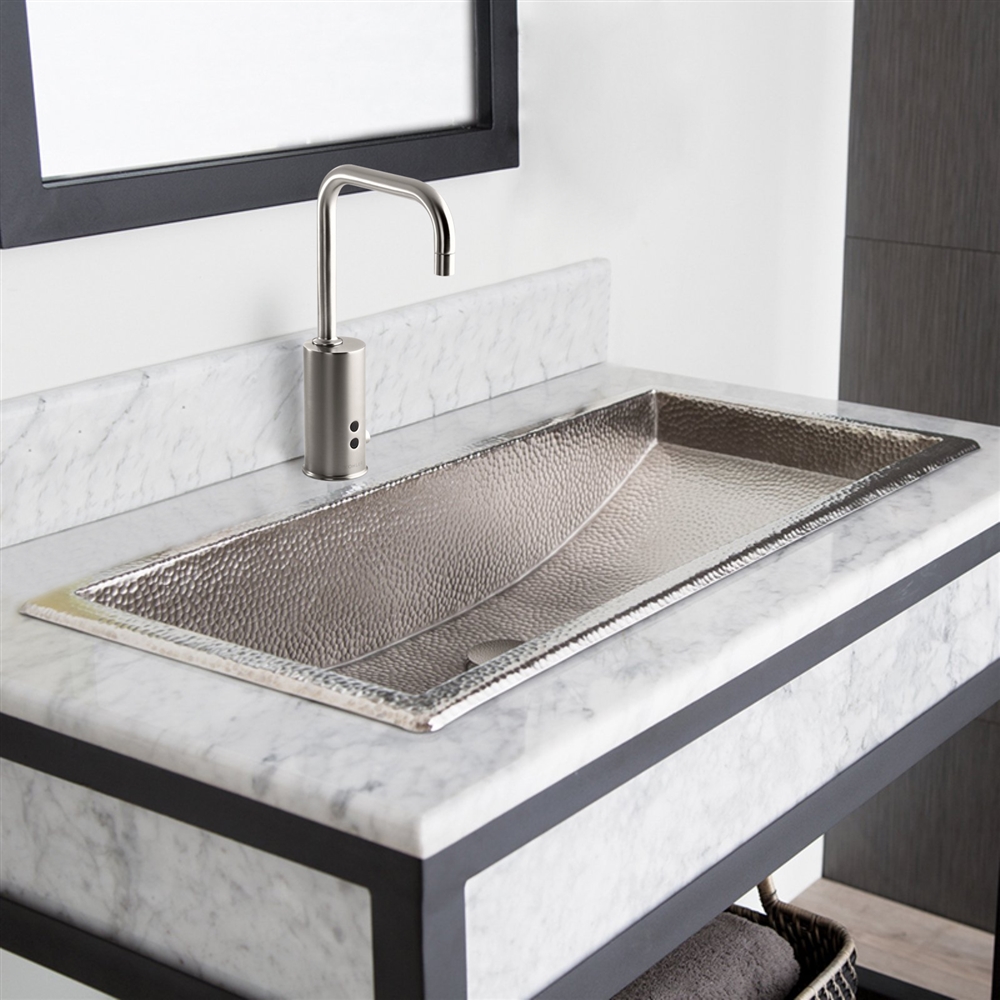

Electronic Faucet for Restrooms

Electronic Faucet for Restrooms

The Electronic Faucet for Restrooms is ideal for high-traffic bathrooms. Automatic sensor capability reduces cross-contamination by not touching the faucet or handles. Constructed of brass to ensure longevity and durability. Available in a sophisticated chrome finish. Fits all US Standard plumbing. It has Motion detection ensures touchless operation, Sensitive Sensor with Infrared AI Smart-Chip. Water-resistant solenoid enclosure. Ideal for commercial use applications in public restrooms, restaurants, office buildings, and public facilities. Fits all US Standard plumbing.

Electronic Faucet for Restrooms Features:

• Brand Name: fontanatouchlessfaucets®
• Model Number: FSMT5024DP
• Auto Shutoff: 30-second (Factory set/can be adjusted)
• Power Supply: AC 120V (dual voltage) and DC 6V (batteries not included)
• Diameter of Inlet Pipe: DN15
• Diameter of Outlet Pipe: DN15
• Water Pressure: 0.05Mpa-0.7Mpa
• Power and Voltage: DC.6V, AC.220V-50/60Hz
• Power Consumption: 0.5MW<2W
• Detection Zone: 25cm/10" (Factory set/based on standard inductive board)
• Ambient Temperature: 1-45℃/33.8-113°F
• Degree of Protection by Enclosure: 1P56
• Flow Rate: Available Flow Rate From 0.5 to
• BIM Touchless Faucet File: This touchless restroom faucet is available in Revit Family & BIM Object File for easy specifications.
• Usage: Commercial

fontanatouchlessfaucets® Product Warranty Information

Installation Instructions for Fontana Lima Commercial Chrome Electronic Automatic Sensor Faucet
