White and Gold

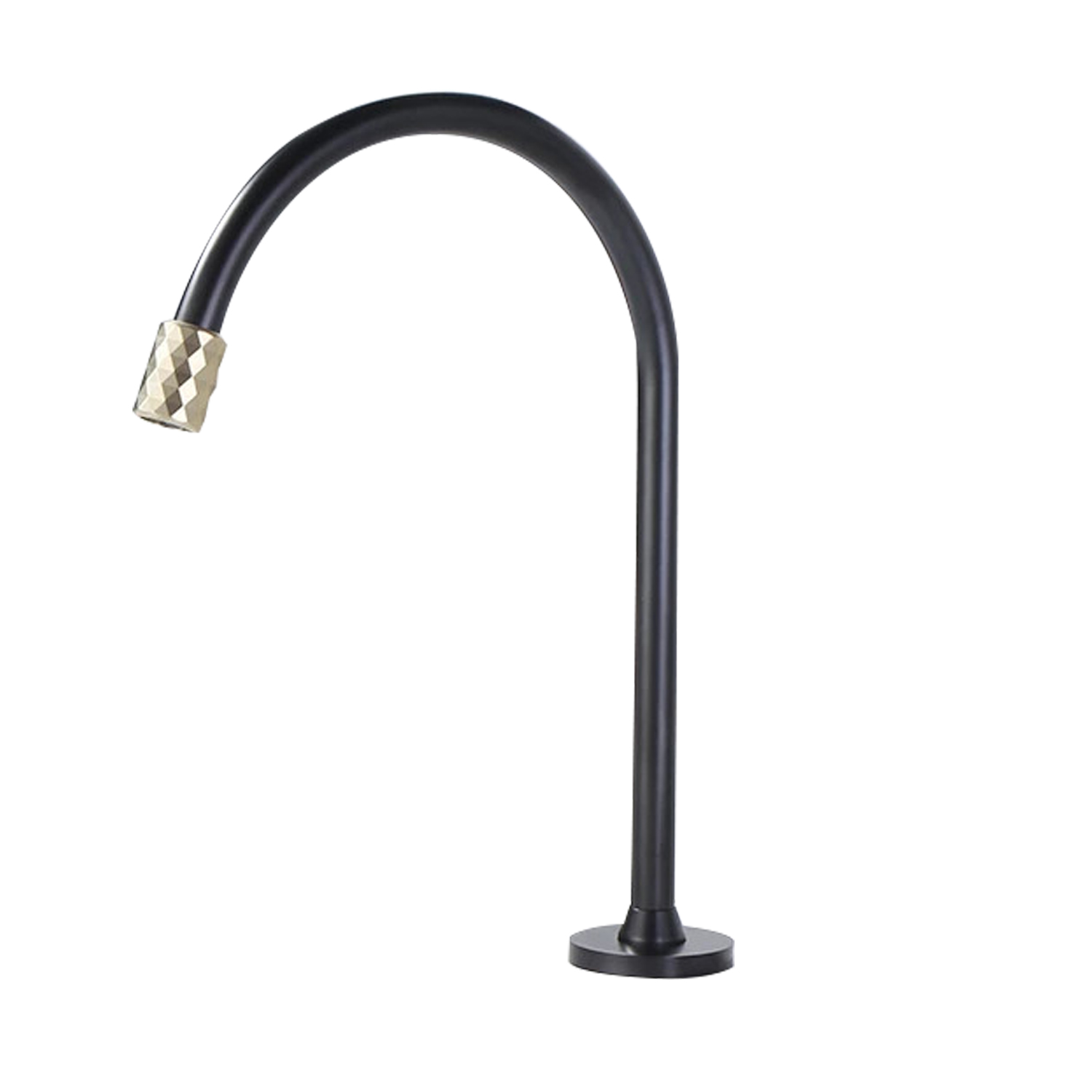

Fontana Commercial Black and Gold Automatic Sensor Faucet

The Fontana touchless sensor faucet provides the best way to save water by automatically turning the water on and off by means of a motion sensor. At the same time, it reduces the risk of germ contamination, offering a completely contactless operation of the faucet. The delivery includes all the necessary accessories for mounting. The standard pipe connections and power supply (AC 120V (dual voltage) and DC 6V) make the installation easy in both new and existing applications. Sensitive Sensor with Infrared AI Smart-Chip. Durable Vandal-Resistant Brass Body; Ideal for commercial high-use applications. Ideal for commercial use applications in public restrooms, restaurants, office buildings, and public facilities. Fits all US Standard plumbing. Fits all US Standard plumbing.

Fontana Commercial Black and Gold Automatic Sensor Faucet Features:

• Brand Name: FontanaShowers®
• Model Number: FS-507-BG
• Auto Shutoff: 30 Seconds (Factory set, can be adjusted)
• Water Pressure: 0.5-7.0 KGS/CM, 10-125 PSI
• Power Supply: AC 120V (dual voltage) and DC 6V (batteries not included)
• Power Options: AC/DC
• Battery Type: 4 x 'AA' size cells
• Diameter of Inlet Pipe: DN15
• Diameter of Outlet Pipe: DN15
• US Standard Water Supply Pipe Size: DN15 (G1/2")
• Water Pressure: 0.05Mpa-0.7Mpa
• Power: DC.6V
• Detection Zone: 0.94" (25cm/Factory set, based on standard inductive board)
• Ambient Temperature: 1-45°/33.8-113°F
• Degree of Protection by Enclosure: 1P56
• Flow Rate: Available Flow Rate From 0.5 to
• BIM Touchless Faucet File: This touchless restroom faucet is available in Revit Family & BIM Object File for easy specifications.
• Usage: Commercial
