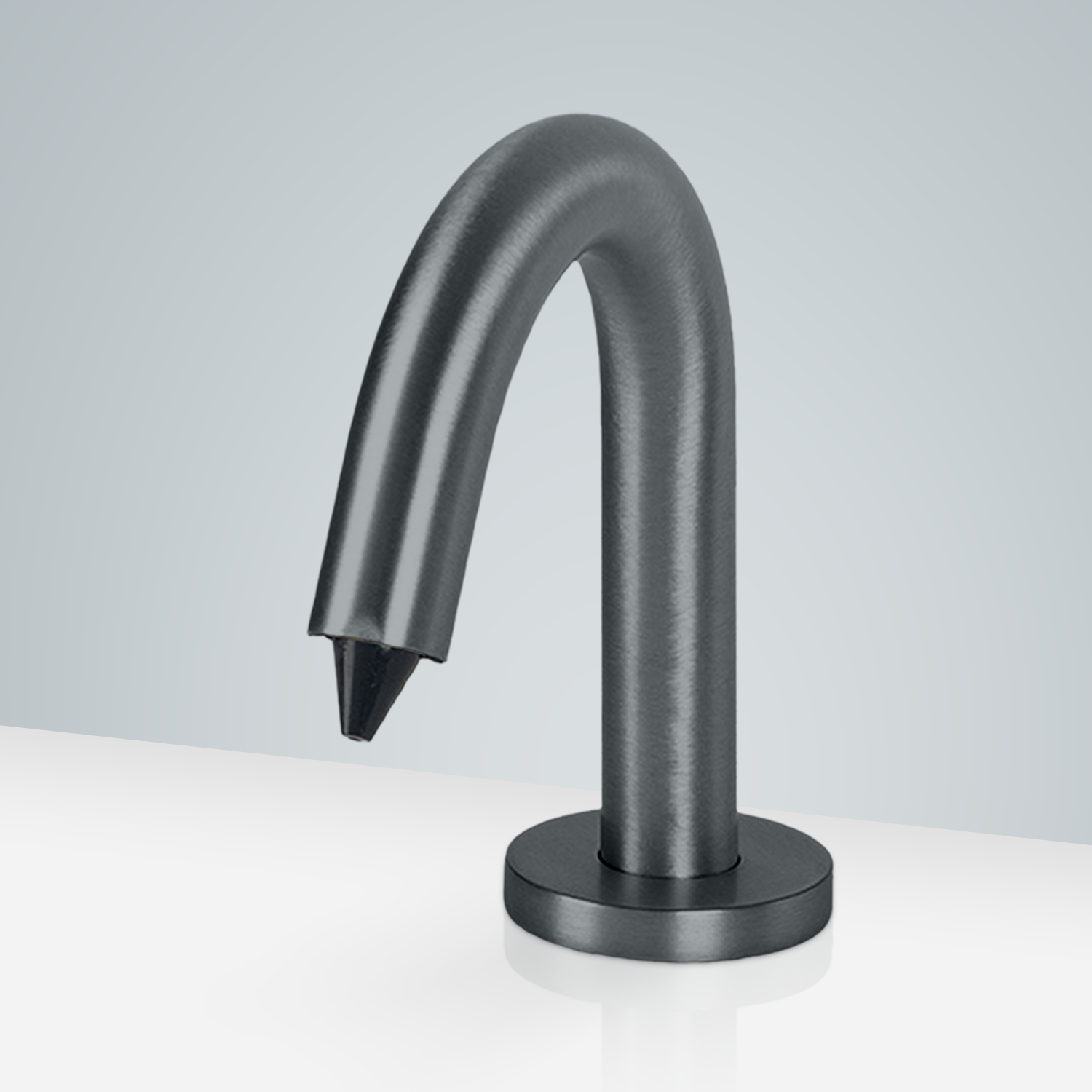

How to install Dijon Hand Free Deck Mount Soap Dispenser In Oil Rubbed Bronze Finish | FS10051


Easy step by step Installation Instructions for Commercial Sensor Automatic Soap Dispenser
Visit Product Page
  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the products for any shipping damages. If you find damages, do not install.
  • Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.
 sensor


Soap Dispenser Installation Instructions

Hole Size Chartauto soap
Soap Bottle Size









Step 1sensorStep 2:




Step 3:
Step 4:



Step 5:Step 6:


Step 7:Step 8:


Step 9:Step 10







sensor



Features:

More Hygienic
The proximity sensor removes the need to touch the spout, reducing the spread of germs and reducing the chance of cross-infection.

Battery Override
Your infrared soap dispenser is supplied with a backup battery pack. In the event of a power failure, the product will automatically switch to battery-operated mode to ensure the spout continues to function.

Low Battery Warning
When the batteries run low and the power falls below 3.9V the sensor light will flicker to indicate the batteries are running low and need replacing.
When the batteries are exhausted the sensor light will not light up.


Installation

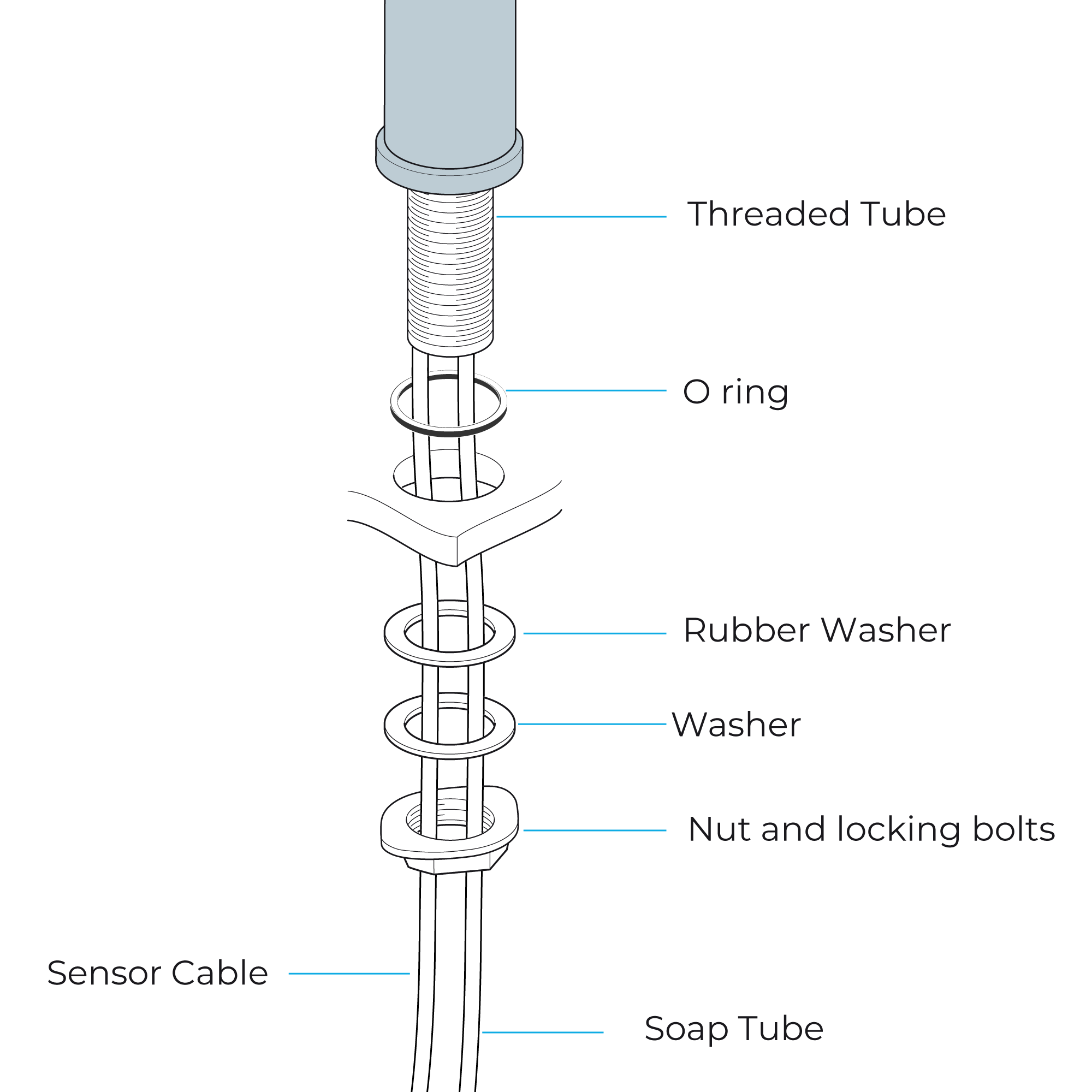

1. Fit The Spout
Fit the spout to the sink/basin ensuring the dispensing cable and sensor cable are threaded through the hole in the sink/basin.

2. Secure Spout to Sink / Basin
Screw the metal back nut onto the thread of the spout upto the underside of the sink/basin.
Tighten backnut using a suitable spanner.

3. Fit Wall Brackets
Position the brackets onto the wall surface and mark the position of the fixing holes.
Remove the brackets and drill suitable holes for the wall plugs supplied.
Before drilling into walls, check that there are no hidden electrical wires, cables or water supply pipes. This can be checked with the aid of an electrical detector:

If power tools are used do not forget to:
- Wear eye protection
- Unplug equipment after use
Fit the wall plugs and position the brackets into position and secure using the screws provided.

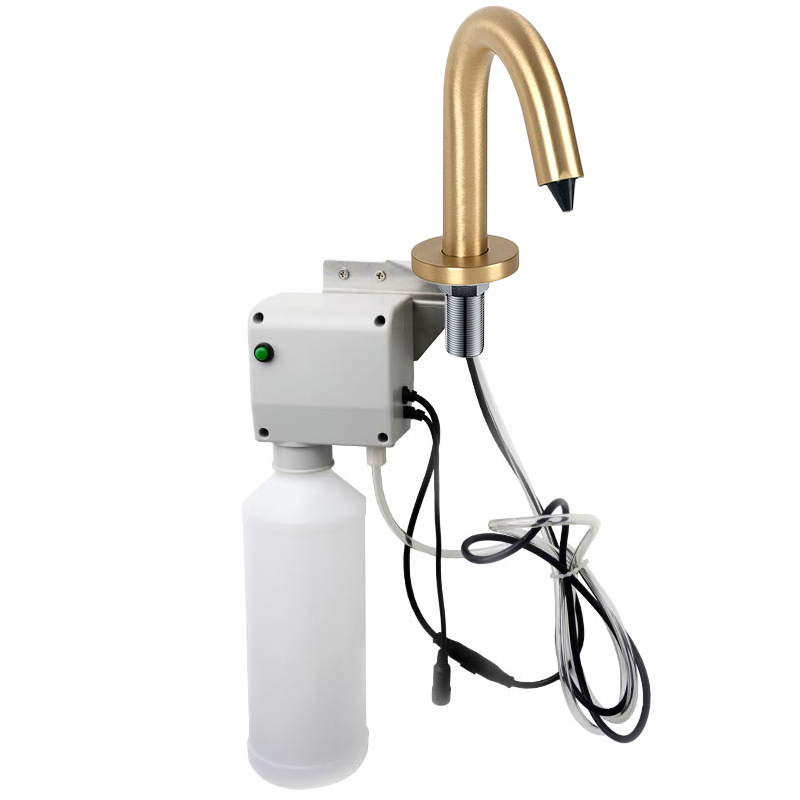

4. Attach Pump to Bottle
Ensure the dispenser tube is located inside the bottle and push the pump down firmly onto the bottle until a loud ‘click’ is heard.
To remove the pump from the bottle press the release button in on the side of the pump and pull the pump from the bottle.

5. Connect Sensor Cable and Dispenser Cable
Connect the sensor cable from the spout to the sensor cable on the pump. Push the two connections together and tighten the connecting ring to ensure the two connections are locked together.
Connect the dispensing cable from the spout into the top connection on the pump.
Push the threaded connection of the dispensing cable into the connection on the pump and tighten the nut ensuring it is fully tightened.
A suitable spanner may be used to tighten the nut.

6. Place Pump into Bracket
The pump has a cut-out section which the wall bracket slots into.

7. Connect Power Supply Cable
Before starting any electrical work ensure the power supply is isolated.
Wire the electrical power cable into a switched fused spur off the ring main.
The blue wire should be wired to the neutral connection and the brown wire should be connected to the live connection.

Important: The power lead must be permanently connected to the fixed wiring of the mains supply using the factory supplied power cable.
Plug the power cable into the power cable on the pump.

8. Inserting Batteries
Remove the battery cover by loosening the screw in the top of the cover.
Insert 4 batteries into the battery box ensuring they are inserted the correct way.

Replace the battery box cover and tighten the screw. Insert the battery box into the holder.
Push the holder into the battery box wall bracket.


Commissioning

Commissioning Sequence
Before using the soap dispenser for the first time the following sequence must be carried out.
Fill the bottle full of soap.
Locate the dispense button on the side of the pump. Press and hold the button until soap is dispensed from the spout. This will ensure the dispenser tube and cable are full of soap.


Operation

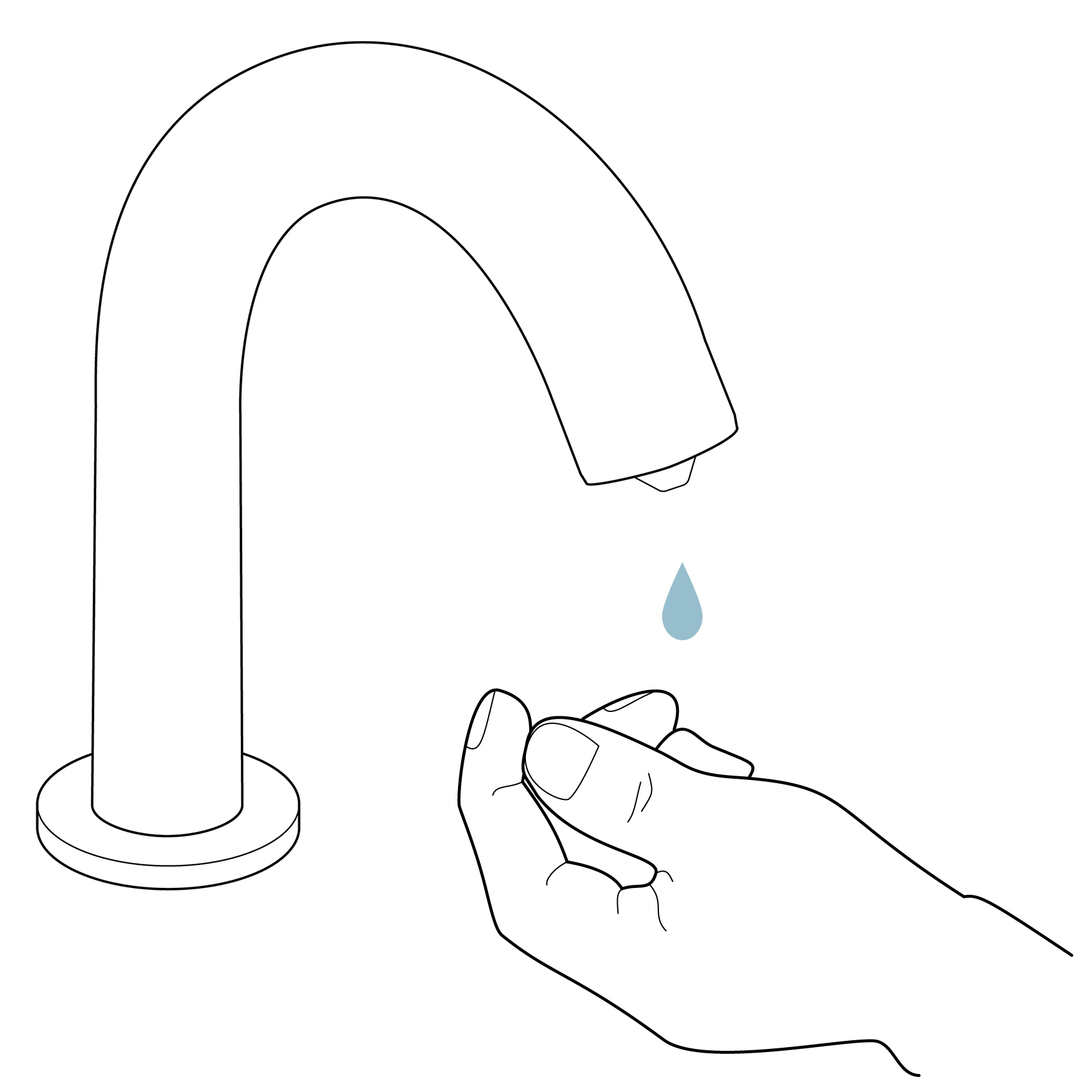

Using the Automatic Soap Dispenser
Place the hands under the spout within the sensing range.
Once the users' hands have been detected a small amount of soap will be dispensed from the spout into the users' hands.




Features:

1. Material: Brass faucet body, beauty & fashion.

2. Anti-blocking: Independent R&D soap pump, design multiple anti-blocking measures.

3. Impurity filter: Built-in filter unit,effectively filter the impurities and protect the soap pump, in this way can prolong the pump working life.

4. Button function: fast filling the soap bottle only pressing the button.

5. Saving resources: save 30% soap solution, and be easy to clean, save time and save water.

6. Hygienic: No touch the faucet body,effectively prevent us from mutual bacterial infections.

7. Moisture-proof seal: Electronic control unit is adopted professional moisture resistance sealant technology.



Specifications:

No.

Product description

Automatic foam soap dispenser

1

Power supply

DC: 6V (4 x AA alkaline batteries)

AC: 220V-240V/50Hz or AC110V/60Hz

2

Power consumption

Static ≤ 0.3mW; Active ≤ 3W

3

Battery life<
