How to install Fontana Brushed Nickel Commercial Temperature Control Automatic Hands Free Sensor Faucet | FS512BN

Easy step by steps installation instructions for Commercial Sensor Faucet		Visit Product Page
Before you begin, please read the installation instructions below. Observe all local building and safety codes. Unpack and inspect the products for any shipping damages. If you find damages, do not install. Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.	sensor

Sensor Faucet Installations Instructions

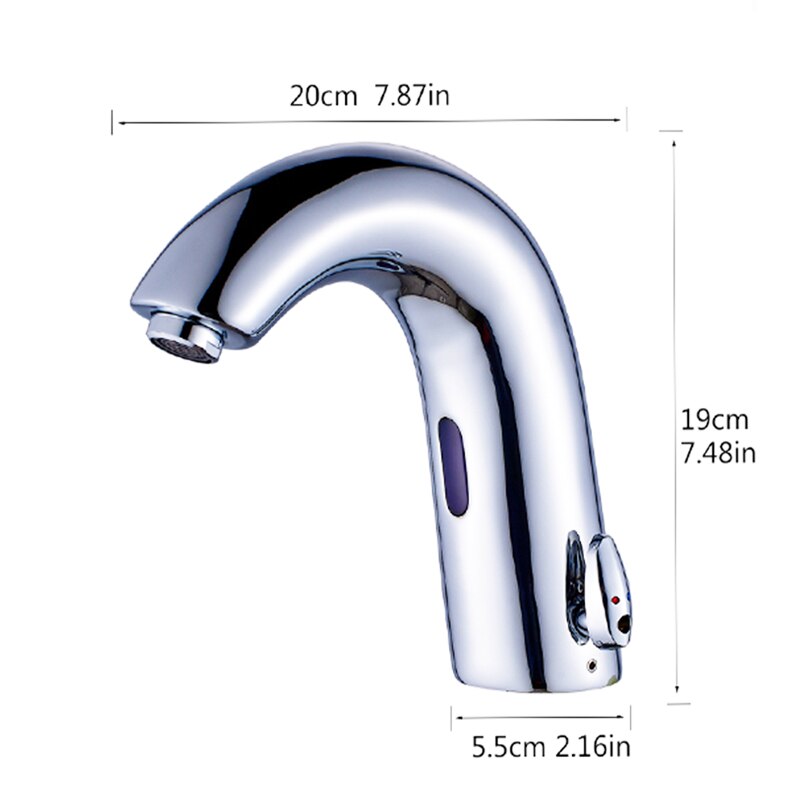

		Hole Size:

Features: - Cold and Hot integration. It is a mixer with the cold water in the left turning and hot water in the right turning. - Water-saving: Water flows out when your hands approach the induction zone, and stop immediately once you draw back your hands. - Low power,electricity-saving: For DC type, 4pcs AA batteries can be used for about 2 years, if the faucet working 200 times a day. Specification: - Installation Type: Deck Mounted - Installation Holes: One Hole - Flow rate: 1.8 GPM (6.81 L / min) - Suitable Water Pressure: 0.3-1.2 MPa - Inductive distance: 12-15 cm - Valve Type: Ceramic Valve - Temperature of environment:1-45°C (cold & hot water ) - Dia of inlet pipe: G1/2" - Dia of outlet pipe: G1/2" Smart infrared sensor automatically adjusts the distance according to the environment.

Size 1: Deck Mount Installation		Step 2:
	sensor

Step 3: Connect to Power Supply		Step 4:


Step 5:		Step 6: (Correct way for Hose)

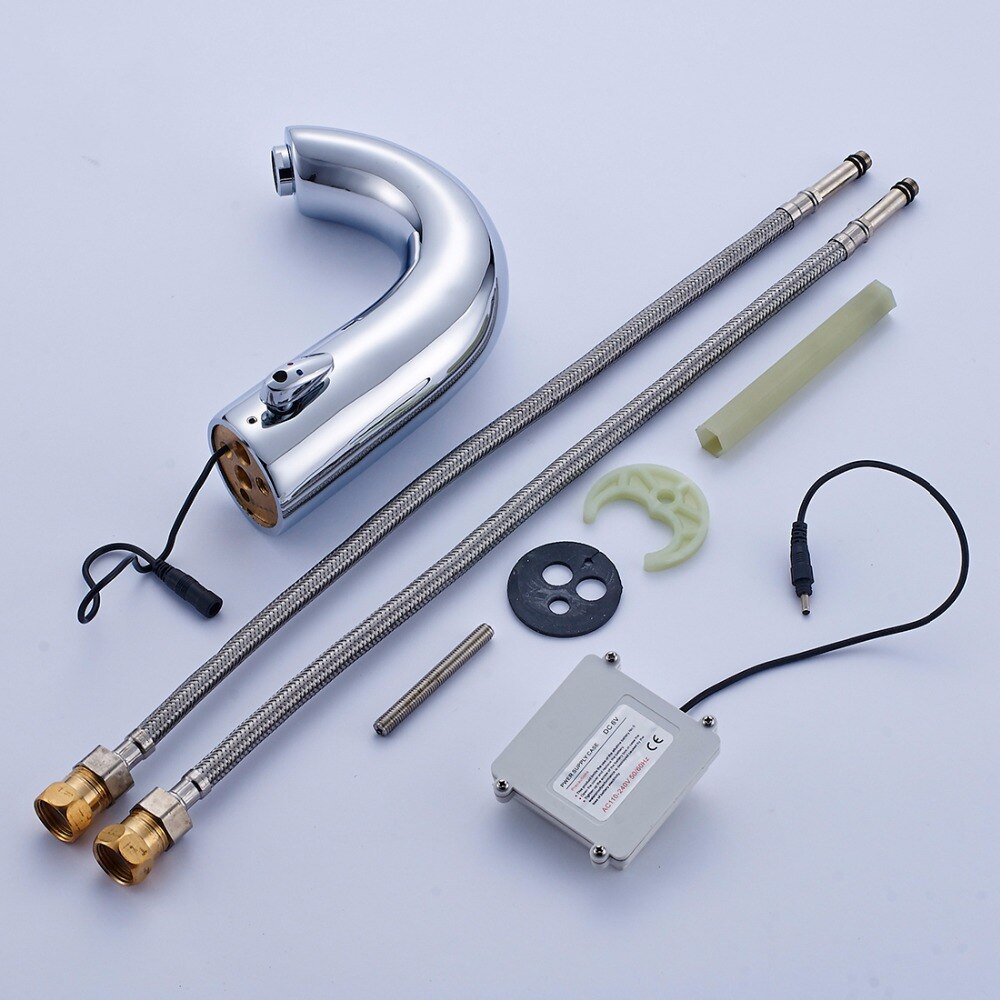

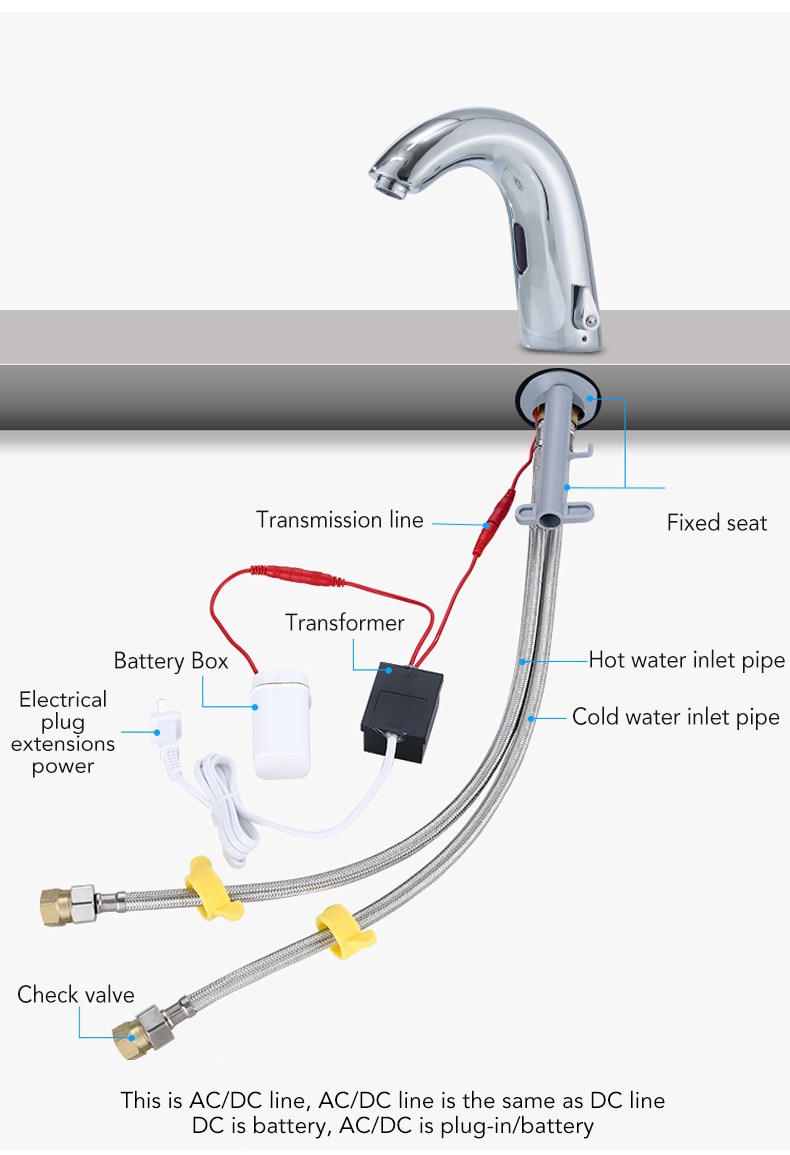

Before installing your new mixer, flush through the pipework to ensure removal of debris, turn off the water supply. Ensure the ‘O’ ring is in place at the bottom of the mixer body. Push the control cable down through the hole and position the mixer on the basin. From the underside of the basin fit the rubber washer, metal washer onto the threaded tube followed by the nut. Tighten the nut to clamp the mixer to the basin. Tighten the 2 side screws up onto the washer. CAUTION: Do not over tighten the nut/bolts as this may damage the basin. Screw the two flexible pipes to the mixer body, but do not over tighten, hand tighten only. Connect the water supply to the inlet pipes. The hot water should be connected to the front pipe. Plug together the connectors coming from the mixer to the transformer. Line up the flats on both the plug and socket and firmly push together.
Flexible Connecting Hose Care must be taken when connecting the flexible connection hose from the power supply box to the spout to ensure it does not bend sharply and kink or twist. See above for recommended ways to fit the flexible connecting hose. *Important:* Failure to follow these guidelines may result in poor performance and damage to the flexible connection hose.

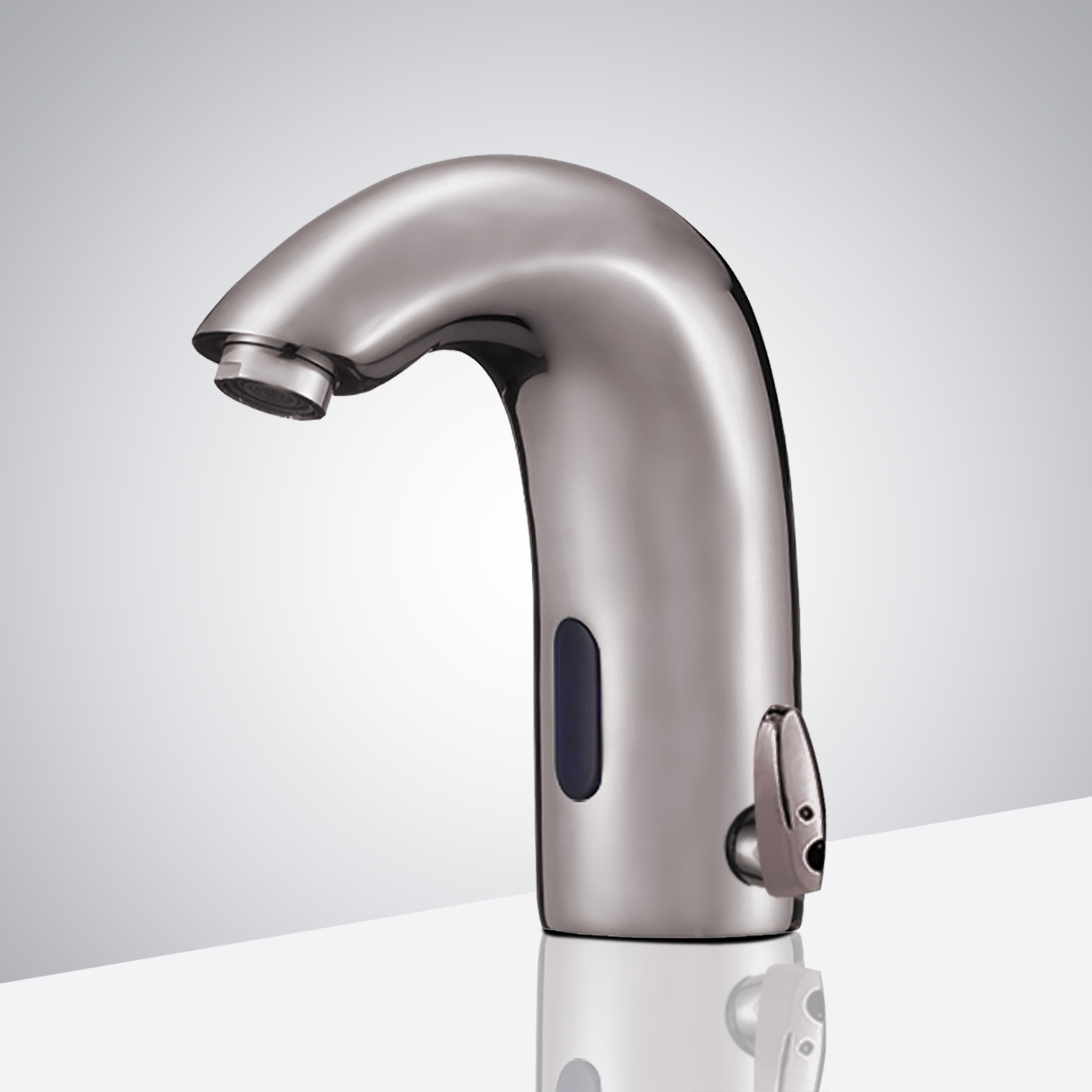

Fontana Brushed Nickel Commercial Temperature Control Automatic Hands Free Sensor Faucet

Many people have difficulty using faucets and water controls that require grasping and twisting faucet handle. Automatic faucets are easy to use they are smart choices, for anyone who wants to conserve water and reduce the spread of germs.Thermostatic sensor tap and faucets have been seen in various public rest areas, but they are becoming more popular in the home too. Residential electronically controlled faucets eliminate the need to touch or turn handles and the temperature and flow rate can be pre-set. Through the use of sensor beams the automatic faucet determines when an object is in front of it and automatically turns on the faucet. Since there is nothing to touch and nothing to reach for, an automatic faucet eliminates all of that cleaning and disinfecting that you do to try to maintain a hygienic surface. Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all US Standard plumbing.

Features:	Visit Product Page
Brand Name: Fontana Model Number: FS512BN Type: Automatic Faucet Water Pressure: 0.05Mpa-0.7Mpa Finish: Brushed Nickel Construction: Solid Brass Power Supply: AC110V and DC6V Batteries Included: Not Mounting Type: Deck Mount Useage: Commercial and Residential Body Material: Brass Style: Contemporary Ambient Temperature: 1-45°C/33.8-113 °F Usage: Commercial / Residential
