Fontana Rio Goose Neck Brushed Nickel Touchless Automatic Sensor Faucets Bathroom

Fontana Rio Commercial Goose Neck Brushed Nickel Touchless Automatic Sensor Faucets Bathroom & Kitchen

Alternative Views:

Retail Price: $700.92

starting at: $477.58

Price with Selected Options: $477.58

Commercial Orders: Need RFQ Click Here

Availability: Usually Ships in 5 to 10 Business Days
Product Code: FS511BN

Hot & Cold Option:
Choose Remote Control (optional):

Qty:

Description

Technical Specs

Extended Technical Information

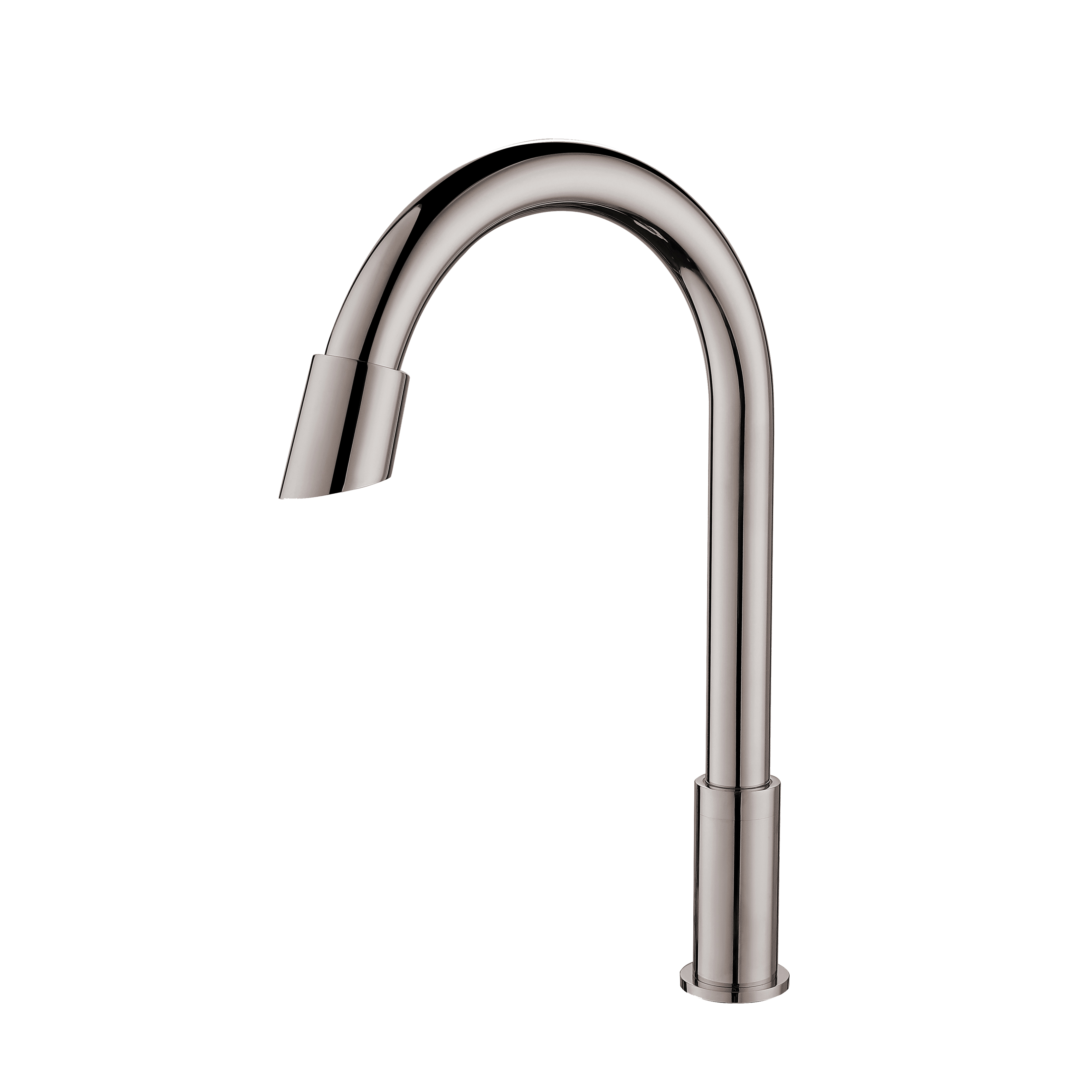

Fontana Rio Commercial Goose Neck Brushed Nickel Touchless Automatic Sensor Faucets Bathroom

Durable solid-brass construction; expertly crafted
Motion detection touchless sensor faucet operation
Drip Free Ceramic Disc Cartridge for Smooth and Long Lasting Operation
Commercial use
Sensitive Sensor with Infrared AI Smart-Chip
Factory set to 30-second Auto Shutoff (can be adjusted).
Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
Solid Brass Construction, Brushed Nickel
Easy to Install - Instructions Included
Water-resistant solenoid enclosure
Advanced energy-saving design for long-lasting battery life
Comes complete with Hoses & Accessories
Power Supply: AC110V And DC6V (batteries not included)
AC/DC power option.
ADA Compliant
Stainless Steel Hoses Included
Can be installed easily in new or upgraded retrofit commercial bathrooms.
Usage: Commercial
Ideal for commercial use applications in public restrooms, restaurants, office buildings, public facilities, and hospitals. Fits all standard US plumbing.

Intelligent: with its micro-computer controlling its action, the faucet can self-adjust its best detection zone as per the color and shape of the lavatory! The Sensor Faucet finish is brushed nickel, with a built-in Infrared AI Smart-Chip. No Water Dripping Design with 100% Touch-free operation.

ADA Compliant. Heavy Duty Automatic Touchless Sensor Faucet, Solid Brass, 360-degree rotating neck. Generally Suitable for Heavy Traffic Environments such as Food Handling Facilities, Laboratories, Clinics as well as Commercial Applications. Perfect for the Bathroom.

Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water by eliminating unnecessary or unattended water flow.

Sensor Activated Faucet Special Features:

Durable Vandal-Resistant Brass Body; Ideal for commercial high use applications
Intelligent: with its micro-computer controlling its action, the faucet will self-adjust its best detection zone as per the color and shape of the lavatory
Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
The meanings of the codes are described in the installation instructions.
Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
The faucet can be mounted to any sink surface.
ADA Compliant
The battery's life is 8,000 cycles per month and with enough water pressure is approx 5 years service life of the batteries.
Adjustable sensing range; while the factory range is set about 4" to 5" from the sensor, it can be adjusted.

Diameter of inlet pipe: DN15
Diameter of outlet pipe: DN15
Water Pressure: 0.05Mpa - 0.7Mpa
Power: DC.6V
Detection Zone: Factory set 25cm/10" (based on standard inductive board)
Ambient Temperature: 1 - 45 ℃ / 33.8 -113 °F
Degree of protection by enclosure: 1P56

Overall Height: 11- 1/2" (measured from countertop to the highest part of the faucet)
Spout Height: 7-3/4" (measured from countertop to the spout outlet)
Spout Reach: 5-1/2" (measured from the center of the faucet base to the center of the spout outlet)
Mounting Type: Single hole
Number of Holes Required for Installation: 1
Faucet Centers (Distance Between Handle Installation Holes): Single Hole
Flow Rate: 1.3 GPM (gallons-per-minute)
Maximum Deck Thickness: 1-5/8"
Faucet Body Material: Brass
Faucet Spout Material: Brass
Maximum Deck Thickness: 1-5/8"
Infrared sensor operation
