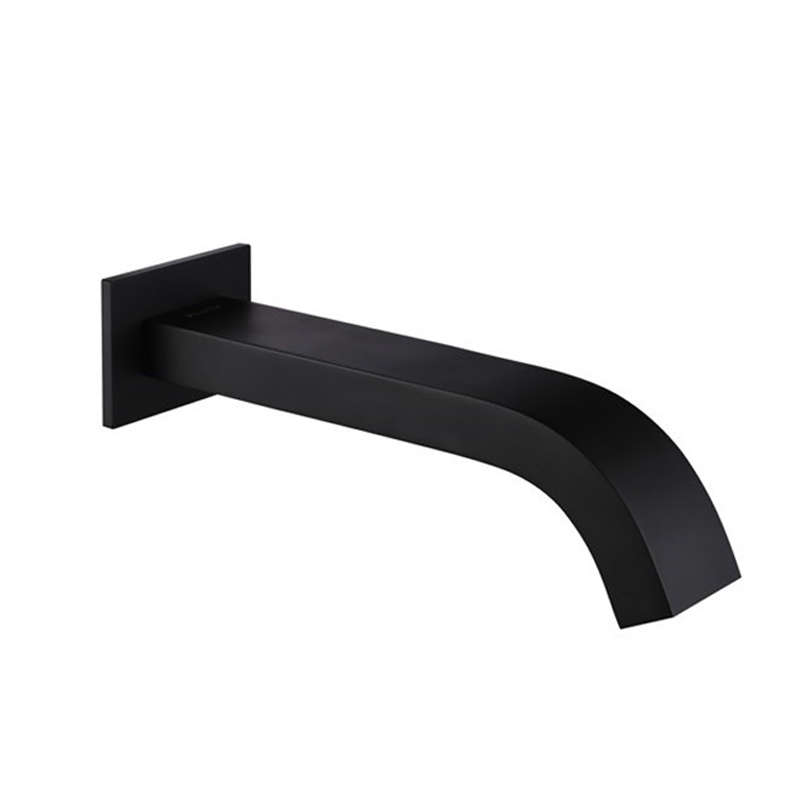

Fontana Commercial Wall Mount Automatic Motion Sensor Faucet Matte Black Finish
Ideal for commercial use applications in public restrooms, restaurants, office buildings, and public facilities. Fits all standard US plumbing.
Wall Mount Sensor Faucets
- Type: Motion Faucet
- Model Number: FSF5619MB
- Surface Treatment: Polished
- Number of Handle: 0
- Power supply: DC, AC, AC+DC
- Surface Finish: Matte Black
- Faucet Mount: Single Hole
- Style: Contemporary
- Approval: CE, WRAS,CUPC, ROHS,WATERMARK
- Battery Lifespan: 108000 Flushes
- Brand Name: Fontana Sensor Faucets
- Feature: Sense Faucets, Thermostatic Faucets, Electric Faucets, 2014 Electrical Sensor Sink Basin Tap
- Installation Type: Wall Mount
- Valve Core Material: Brass
- Sensor Field: 5-30 cm Adjustable
- Flow Rate: 2.0 GPM
Technical Information
- Power Supply: DC:6V(4 x AA alkaline batteries)AC:220V-240V/50Hz or AC110V/60Hz
- Power Consumption: Static≤0.3mW;Active≤3W
- Battery life: 108000 flushes(4 x AA alkaline batteries)
- Sensor Field: (1.96"-13.77")05-35cm (adjustable)
- Water Pressure: 0.05~0.8MPa
- Ambient temperature: 0~55°C
- Working life: 350000~400000 times
- Sensor time: <1 Sec
- Closing time: <2 Sec
- Low voltage indication: 3.9V(The light will flash twice each two seconds)
- Self shut off time: 65-70 Sec (Nonstop flushing)
Fontana Sensor Faucet
- Self-contained design
- Ceramic mixing valve built-in
- Wall mount design one-piece infrared sensor basin faucet
- The sensor is self-adjusting to its installation environment when wired in
- Elect and battery-powered options included
- Solid brass construction
- Hygienic and water conservation

FontanaShowers® Product Warranty Information
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
 Touchless Faucet BIM File
 Specification Sheet
Installation Instructions
Repair & Maintenance Guide
Product Detail Brochure
3D Product Rendering
Installation Detail Video
5-Year Product Warranty
|
|
|
|
|
|
|
